ScanMax 320 Review: Is This Portable A2 Scanner Right for You?

Quick verdict: ScanMax 320 is worth considering if oversized documents or open books regularly make your existing scanning setup awkward. Its appeal depends on usable detail across the whole page and dependable software, not the megapixel headline alone. Before backing, request original sample files and confirmation of the functions available on your operating system.

Research review by BackerOnline · September 18, 2026. We have not tested a physical unit. Specifications below are creator claims; practical assessments are our editorial analysis. Current reward pricing could not be independently verified during this review.

In this review: Specifications · Image quality · Software · Alternatives · Value · FAQ

What is ScanMax 320?

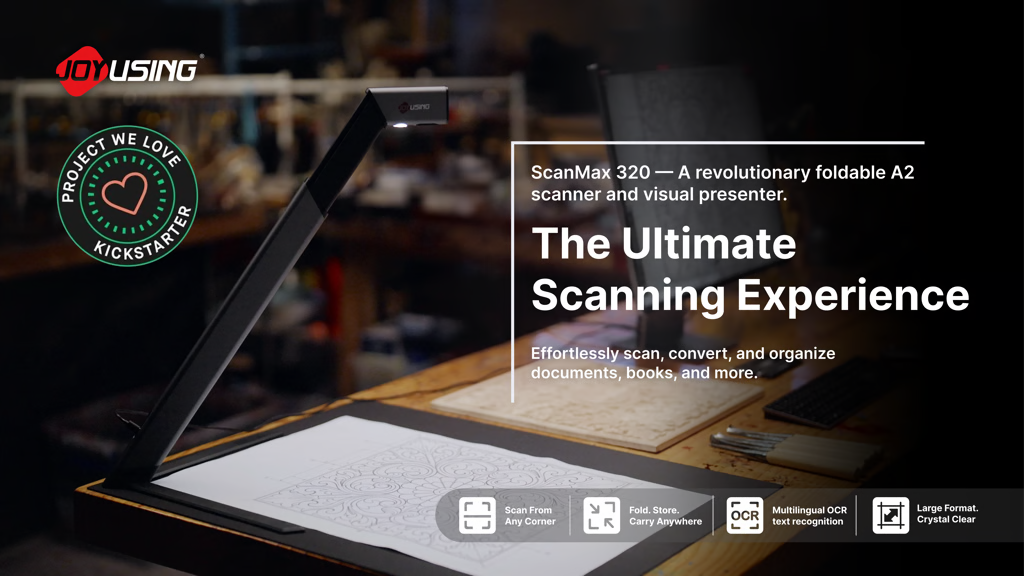

ScanMax 320 is Joyusing's foldable overhead scanner for material up to A2. Its camera looks down at the document from an arm positioned near the desk's corner. The official product page also describes live visual presentation. This makes the concept relevant to people moving between document capture and showing physical material during a lesson or meeting.

Selected specifications published by Joyusing

Item	Creator specification
Maximum capture area	A2, 594 × 420 mm
Imaging	Up to 32 MP; up to 6528 × 4896 pixels
Connection and power	USB-C; USB powered
Folded dimensions	355 × 68 × 51 mm
Scanning mat	700 × 580 mm
Lighting	Rectangular LED illumination; three brightness settings

Source: Joyusing's official ScanMax 320 page. These are published specifications, not measurements from our own testing.

A small scanner still needs room for a large page

The design addresses a useful distinction: the space a machine permanently occupies versus the space needed while using it. A folding camera arm could be easier to store between sessions than a large enclosure. However, an A2 sheet still needs a suitable surface, and the listed mat is larger than the document itself.

Before choosing it for a compact desk, mark out the mat area with paper. Include room for your computer, cable routing and somewhere to put the next document. If you must clear your entire work surface for every session, storage convenience may be the main benefit rather than uninterrupted desk use.

For travel, think of portability as carrying a capture setup between workspaces. The USB-powered specification does not establish independent battery operation or a computer-free workflow. A reliable place to set up matters as much as fitting the folded unit into a bag.

Does 32 MP mean enough detail for A2?

Pixel count describes the image grid; it does not prove that tiny annotations will remain legible at the edges of a large drawing. Focus, alignment, lighting, document flatness and processing all influence the useful result. Nor does a selectable output resolution demonstrate equivalent optical detail.

Our most useful purchase test would be an original, full-size scan of an A2 sheet containing small print, fine lines and detail in all four corners. Inspect that file at normal reading size and at 100% magnification. A reduced website image can conceal blur and aggressive sharpening.

For artwork, request a sample with pale tones and textured or reflective areas. For plans, inspect thin intersecting lines and small dimension labels. For bound documents, look near the gutter. These are different requirements, so a convincing sample of one does not settle the others.

We would also compare an unprocessed capture with the corrected version. A visually tidy page is useful, but correction should not erase faint handwriting, crop marginal notes or bend straight lines. Keep original captures when the source material matters.

Software compatibility is the main question to resolve

Two official sources disagree: the product page advertises OCR in 180 languages, while the campaign FAQ lists 38. The product page also describes reduced macOS functionality. We cannot establish which language set applies to every delivered software version.

The FAQ says companion software is included and TWAIN drivers are available on request. It also warns that features vary by operating system. Ask Joyusing to confirm the exact combination you need, rather than treating general desktop compatibility as proof of identical functionality.

For example, someone scanning bilingual notes needs accurate recognition of both languages in the same workflow. Someone processing tables needs more than readable text: row order, column structure and export behavior matter. Request a sample created with your intended operating system and the current software build.

For confidential documents, establish whether capture, OCR and export work locally, whether an account is necessary, and whether any stage uploads files. We have not verified those details. Also check whether your preferred document-management application accepts the output directly; a manual conversion step can undermine the time saved during capture.

How should you compare it with other scanning methods?

The following compares workflow tradeoffs, not measured performance or specific competing products.

Approach	When it deserves consideration	What to test
Overhead scanner	Mixed sizes, open books and occasional physical demonstrations	Corner detail, page positioning, shadows and correction artifacts
Flatbed scanner	Flat originals where consistent positioning is important	Usable bed size, handling of thick items and storage footprint
Automatic document feeder	Repeated batches of compatible loose sheets	Paper handling, duplex requirements and exceptions that need manual capture
Phone with a stable stand	Occasional capture using equipment you already own	Setup repeatability, lighting and time spent correcting each file

For ScanMax 320, the strongest case is a recurring mix of large sheets and bound material. If almost everything you scan is ordinary loose paperwork, compare total batch time before paying for large-format capability. Time the complete job: setup, positioning, capture, checking, corrections and export.

Price, delivery and who should consider backing

We could not verify an available reward tier or delivered price on September 18, 2026. The brand page still contains a prelaunch deposit promotion; we do not treat that as a current offer. Compare the selected reward, shipping, taxes and included accessories at checkout before deciding whether the value works for you.

The campaign FAQ reviewed for this article estimates shipping beginning around November 2026, after post-campaign production. It states a one-year warranty for manufacturing defects and a no-return policy. These are creator statements, not a delivery guarantee; confirm the terms applicable to your destination and reward.

Most promising fit: teachers, researchers and designers who repeatedly capture varied physical material and can evaluate sample files before committing. An occasional home archivist may also benefit, but should compare the total cost against a simpler existing setup.

Less convincing fit: buyers needing proven color-critical reproduction, a validated preservation workflow, automatic handling of large paper batches, or delivery by an inflexible deadline. The available specifications alone do not establish those capabilities.

Five checks before supporting the project

1. Request an original A2 sample matching your material, including corners and fine detail.
2. Confirm your operating system, OCR languages, export formats and any required driver integration.
3. Ask for an uninterrupted demonstration from setup through saving a usable file.
4. Verify the full delivered price, accessories, software conditions and support process.
5. Read current campaign updates and decide whether the delivery uncertainty is acceptable.

ScanMax 320 FAQ

Is ScanMax 320 a handheld scanner?

It is a foldable overhead design used on a surface. Portability should not be confused with sweeping a handheld device across a page.

Should I assume all advertised OCR languages work on my computer?

No. The official language counts differ, and feature availability varies. Obtain confirmation for your exact software and operating system before relying on a particular language.

Can it replace both a book scanner and a paper feeder?

Evaluate those jobs separately. Capturing an open book and processing a stack of loose sheets involve different handling requirements. We have not measured its throughput for either.

Has BackerOnline tested ScanMax 320?

No. This is a research review based on official published information and our assessment of the buying decision. Image quality, processing accuracy and long-term reliability remain untested by us.

Our verdict

ScanMax 320 has a clear potential role as a storable large-document capture tool. Its value becomes persuasive when the delivered files and software match your work. Resolve the compatibility questions and inspect demanding samples first; those answers matter more than a dramatic demonstration or headline resolution.
